In the whole industrial chain of petroleum exploitation, transportation and refining, pipelines are always exposed to harsh working conditions including strong corrosive media, extreme temperature difference, high pressure and stray current interference. Traditional protective coatings are prone to aging, peeling and failure, which easily cause pipeline leakage, shutdown maintenance and potential safety hazards.
As a high-performance fluoropolymer material, FEP film (Fluorinated Ethylene Propylene film) features outstanding chemical inertness, wide temperature resistance, superior electrical insulation and low surface friction. It has become an ideal protective material for oil pipelines, widely used in oil & gas transmission pipelines, oil field gathering pipelines, refinery process pipelines and subsea pipelines. It effectively extends pipeline service life, cuts operation & maintenance costs and improves overall operational safety.

1. Superior Properties of FEP Film for Oil Pipeline Service

Manufactured by melt extrusion and biaxial stretching, FEP film perfectly matches severe oilfield working environments with its comprehensive advantages:
  1. Excellent Chemical Corrosion Resistance

    With fully fluorinated molecular structure, FEP film is inert to crude oil, natural gas, hydrogen sulfide, chloride ions, acid-base solutions and various organic solvents. It will not swell, permeate or degrade, solving the common defects of traditional rubber and epoxy coatings under high-sulfur and high-salinity oilfield conditions.
  2. Wide Temperature Resistance Range

    Continuous working temperature ranges from -80℃ to 200℃, and it can withstand instant high temperature up to 260℃. It maintains stable physical performance without cracking or softening in polar low-temperature areas, desert high-temperature environments and high-temperature steam heating pipeline systems.
  3. Reliable Electrical Insulation Performance

    Stable dielectric constant and high breakdown voltage ensure stable insulation effect unaffected by temperature, humidity and oil pollution. It effectively isolates stray current between pipelines, soil and seawater, prevents electrochemical corrosion, and supports stable operation of pipeline cathodic protection systems.
  4. Low Friction & High Wear Resistance

    Ultra-low surface energy brings excellent self-lubricating, anti-scaling and anti-wax deposition effects. It greatly reduces fluid transmission resistance and pipeline energy consumption, while resisting external impact and medium erosion damage.
  5. Strong Weather Resistance & Good Flexibility

    Great UV resistance and anti-aging performance ensure long-term outdoor service without chalking or cracking. Flexible texture enables tight fitting on pipeline curved surfaces, welds and elbows without bubbles or warping, suitable for pipelines with various calibers.

Premium Aorita FEP Film Advantages

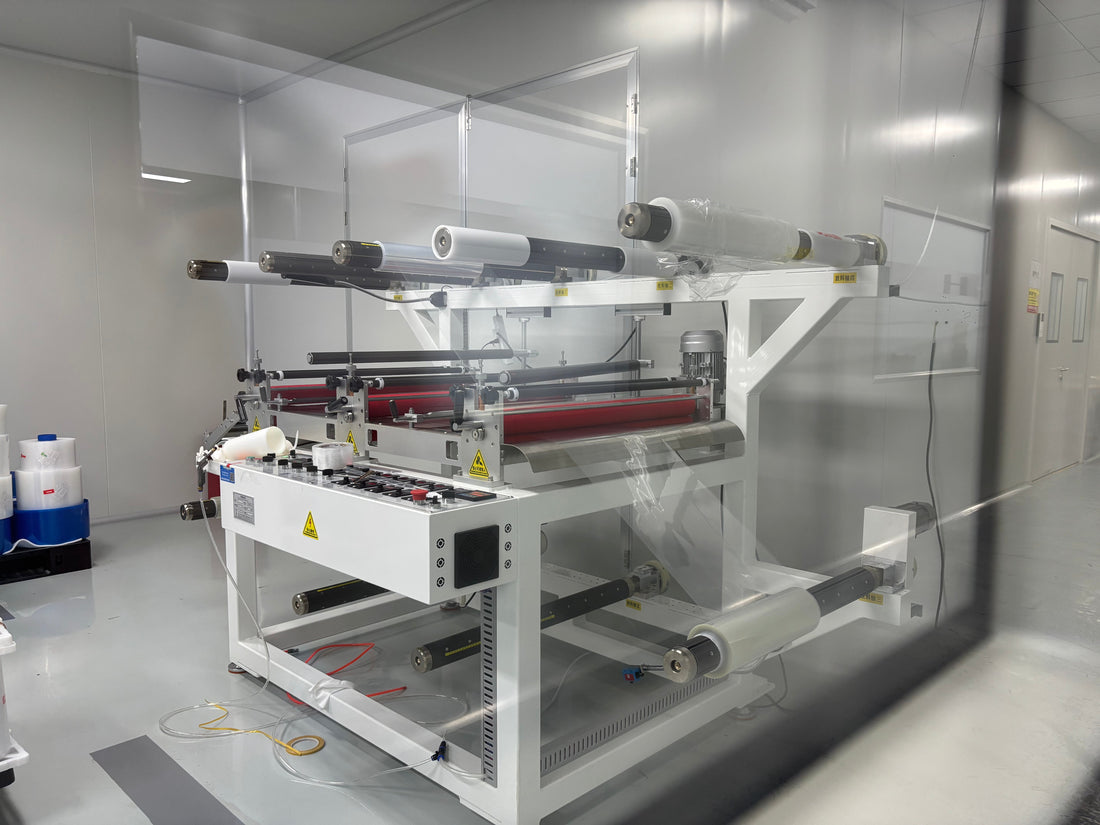

Our Aorita FEP film is fully produced with imported raw materials strictly sourced from top-grade suppliers. It boasts consistent stable quality, reliable performance and stable physical indicators in long-term harsh field applications. Supported by standardized large-scale production workshops and an experienced professional factory team, we realize streamlined production and strict quality inspection throughout all procedures. Meanwhile, we offer competitive and favorable market prices, enabling clients to obtain high-standard industrial-grade FEP film products with cost-effective purchasing solutions, and enjoy stable supply as well as thoughtful one-stop service.

2. Main Application Scenarios of FEP Film in Oil Pipelines

2.1 External Wall Anti-corrosion for Buried, Overhead & Subsea Pipelines

Buried pipelines suffer from soil salt corrosion and microbial erosion; overhead pipelines are damaged by wind, rain and ultraviolet rays; subsea pipelines face severe seawater corrosion.

FEP film with special adhesive layer can be tightly wrapped on pipeline outer walls to form a dense continuous protective layer. It replaces outdated asphalt coating and PE anti-corrosion tape, extending pipeline anti-corrosion service life to more than 30 years and greatly reducing daily maintenance frequency.

2.2 Inner Wall Lining & Drag Reduction for Fluid Transmission Pipelines

Crude oil containing sulfur, wax and asphaltene easily causes inner wall corrosion and pipeline blockage. Lining FEP film inside pipelines can completely separate metal pipe walls from corrosive media to avoid internal corrosion fundamentally.

Its smooth inner surface lowers pumping energy consumption effectively, reduces wax deposition and scaling, and decreases pipeline pigging times, ensuring stable long-distance oil and gas transportation.

2.3 Reinforced Protection for Pipeline Welds, Elbows and Flanges

Pipeline weld joints, elbows and flange connections are vulnerable corrosion weak points. Cuttable FEP sealing film can wrap these key positions tightly, realizing dual functions of sealing and anti-corrosion. It absorbs vibration stress, prevents medium leakage and avoids electrochemical corrosion at connecting parts.

2.4 Electrical Isolation Protection for Cathodic Protection System

When pipelines pass through electrified railways and high-voltage line areas, stray current will affect cathodic protection efficiency. FEP film acts as high-insulation isolation material at pipeline support and fixed positions, effectively blocking current leakage and guaranteeing normal operation of anti-corrosion protection systems.

2.5 Emergency Repair & Local Damage Remediation

Self-adhesive FEP film enables fast on-site pipeline repair without fire operation and complex construction equipment. It can be used for quick leakage blocking and anti-corrosion reinforcement under normal pipeline operating status, featuring convenient construction and long service life after repair.

3. Performance Comparison: FEP Film VS Traditional Pipeline Protection Materials

Performance FEP Film Epoxy Coating PE Anti-corrosion Tape Asphalt Coating
Corrosion Resistance Excellent Moderate Good Poor
Temperature Resistance -80℃~200℃ -20℃~80℃ -30℃~60℃ -10℃~40℃
Insulation Effect Superior Ordinary Fair Weak
Service Life Over 30 Years 5-8 Years 10-15 Years 3-5 Years
Construction Efficiency High Low Medium Low
Maintenance Cost Ultra-low High Medium Very High

4. Standard Construction Guidelines for FEP Pipeline Protection Film

  1. Conduct strict surface derusting and oil removing treatment on pipelines to keep surfaces dry and clean.
  2. Select matched FEP film types: acrylic adhesive type for outdoor anti-aging use, silicone adhesive type for high-temperature working conditions, self-adhesive type for rapid repair.
  3. Control construction ambient temperature between -10℃ and 40℃, avoid construction in heavy rain and strong sunlight.
  4. Keep reasonable overlapping width during wrapping construction to ensure no gap and wrinkle on the protective layer.

5. Conclusion

Against the increasing demand for high-safety and long-service-life oil pipeline operation, FEP film stands out with comprehensive advantages of strong corrosion resistance, stable temperature adaptability, excellent insulation and easy installation. It covers full-cycle protection solutions including external anti-corrosion, internal drag reduction, joint sealing, electrical isolation and emergency maintenance.
Adopting FEP film for oil pipeline protection is an economical and reliable choice for petroleum enterprises to reduce operational risks, optimize cost control and promote safe and stable production.
