ECTFE Application in Pharmaceutical Rubber Stoppers: Premium Material for Drug Safety & Stability
分享
In the pharmaceutical packaging industry, rubber stoppers are critical sealing parts that come into direct contact with drug solutions. Their material performance is vital to drug purity, shelf stability and clinical medication safety. As biotech drugs, vaccines, anti-cancer drugs and high-purity pharmaceutical formulations keep upgrading, conventional rubber materials can hardly satisfy strict requirements on biocompatibility, corrosion resistance and ultra-high cleanliness.
ECTFE (Ethylene Chlorotrifluoroethylene) is a premium fluoropolymer with superior chemical inertness, ultra-low leachables and outstanding thermal stability. It has become the preferred functional material for upgrading medical rubber stoppers, providing stable, compliant and high-reliability sealing solutions for global pharmaceutical manufacturers.
Core Advantages of Medical Grade ECTFE
1. Excellent Chemical Inertness
ECTFE boasts strong resistance against strong acids, alkalis, halogen substances, oxidants and most organic solvents. It will not swell, dissolve or deteriorate when immersed in various pharmaceutical liquids for a long time. As an isolation barrier, it effectively separates butyl rubber substrate from drugs, avoiding ingredient precipitation, drug adsorption and pharmaceutical deterioration. It is perfectly suitable for sensitive high-activity drugs, vaccines and targeted therapeutic preparations.
2. Ultra-Low Extractables & High Purity
Medical grade ECTFE features extremely low metal ion content and minimal organic extractables. It fully complies with FDA, USP Class VI, EP and Chinese pharmaceutical packaging standards. With low surface tension and non-adhesive property, it never absorbs active pharmaceutical ingredients and restrains microbial growth. Produced in Class 7 clean workshop, it effectively reduces particle contamination and ensures sterile drug storage.
3. Wide Temperature Resistance & Sterilization Stability
ECTFE maintains stable physical performance from -200℃ to 170℃. It withstands high-pressure steam sterilization at 121℃ and gamma ray sterilization without deformation, performance decline or aging. It remains flexible and crack-proof under ultra-low temperature storage conditions, ideal for cold-chain preserved mRNA vaccines and biological reagents.
4. Superior Puncture & Sealing Performance
ECTFE thin film can be tightly laminated on medical halogenated butyl rubber stoppers. It delivers moderate puncture force, no chip falling off during needle penetration and excellent self-sealing effect after puncture. It maintains stable airtightness and moisture-proof performance during long-term pharmaceutical storage and transportation.
5. Reliable Biocompatibility
ECTFE passes strict biological safety tests with no cytotoxicity, sensitization risk or genetic toxicity. It can be safely used for direct contact with injection solutions, blood products and medical preparations, covering all mainstream pharmaceutical delivery scenarios.

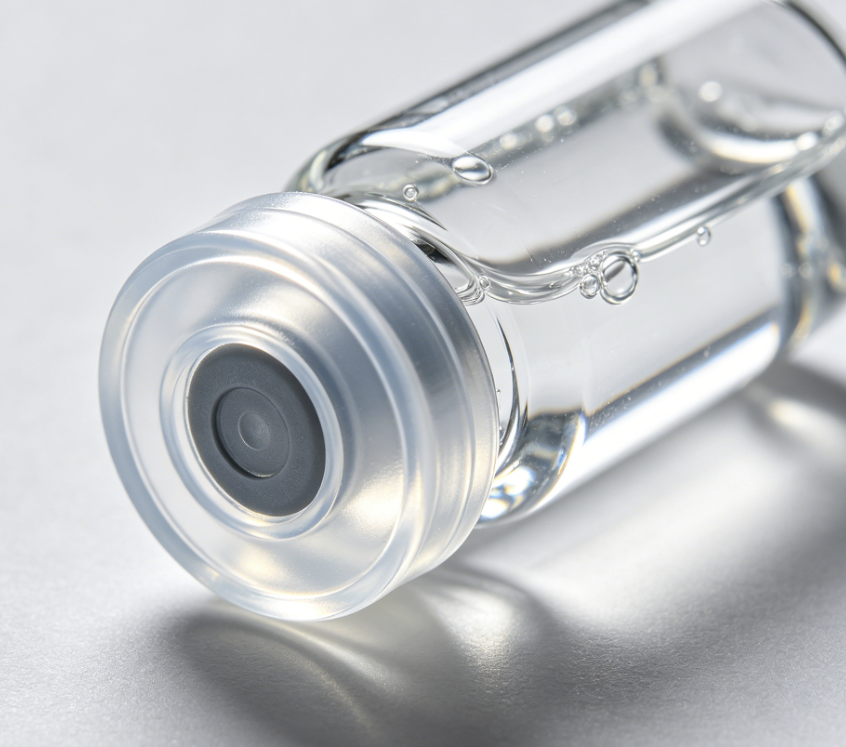

Main Application Structure: ECTFE Laminated Rubber Stopper
The mainstream application form is composite laminated structure:
High-quality medical brominated butyl rubber / chlorinated butyl rubber as elastic base, combined with 25~50μm medical ECTFE functional film as drug contact layer.
Adopting solvent-free hot pressing composite technology, the film is closely bonded without residual solvent, bubbles or peeling risks.
Main Application Scope:
- Vaccine vial rubber stoppers
- Lyophilized powder injection stoppers
- Infusion bottle sealing plugs
- Pre-filled syringe pistons
- High-corrosion resistant pharmaceutical packaging sealing parts
ECTFE VS Traditional Pharmaceutical Packaging Materials
表格
| Performance | Bare Butyl Rubber Stopper | PTFE Laminated Stopper | ECTFE Laminated Stopper |
|---|---|---|---|
| Chemical Resistance | Ordinary | Excellent | Ultimate full-spectrum resistance |
| Extractable Substances | High | Low | Ultra-low medical grade standard |
| Sterilization Adaptability | Poor | Good | Excellent long-term stability |
| Low Temperature Toughness | Weak | Average | Outstanding |
| Puncture Smoothness | Easy to produce debris | High puncture resistance | Smooth & no particle shedding |
| Processing & Cost | Low cost | Difficult molding | High cost performance & easy processing |
Key Industry Application Scenarios
1. Biologics & Vaccine Packaging
For monoclonal antibodies, recombinant proteins and cold-chain vaccines, ECTFE effectively prevents protein aggregation and active ingredient loss, stabilizing drug activity throughout cold chain transportation and long-term storage.
2. Anti-Tumor & High-Strength Corrosive Drugs
It isolates strong irritant pharmaceutical ingredients from rubber base materials, preventing drug discoloration, precipitation and invalidation, greatly improving pharmaceutical safety.
3. Sterile Injection & Lyophilized Formulations
With excellent moisture barrier and microbial isolation performance, ECTFE laminated stoppers meet GMP sterile production requirements and extend drug valid period effectively.
4. New-Type Medical Delivery Devices
It supports silicon-oil-free pharmaceutical packaging design, reduces drug contamination risks and meets customized demands of long sustained-release preparations and high-precision medical consumables.
Industry Value & Market Trend
With increasingly strict global pharmaceutical supervision and continuous innovation of high-end preparations, high-cleanliness, low-precipitation and high-stability medical packaging materials have become mainstream demands.
ECTFE is accelerating its popularization in the pharmaceutical sealing field, helping pharmaceutical enterprises optimize product quality, meet international export certification standards and expand overseas markets. In the future, ultra-thin high-toughness medical ECTFE film will realize large-scale localized production, further promote cost reduction and widespread application in the global medical packaging industry.
Conclusion
ECTFE has become an irreplaceable core material for upgrading medical rubber stoppers by virtue of its comprehensive superior performance. It solves many pain points of traditional pharmaceutical sealing materials in compatibility, cleanliness and storage stability.
We focus on supplying customized medical grade ECTFE films and laminated stopper supporting materials, providing one-stop high-standard packaging material solutions for global pharmaceutical packaging manufacturers.
